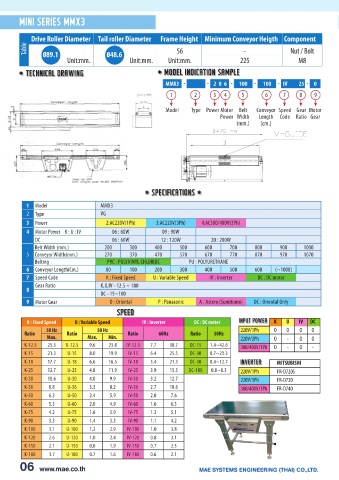

MINI SERIES MMX3 MINI SERIES MMX3
Drive Roller Diameter Tail roller Diameter Frame Height Minimum Conveyor Heigth Component MMX2 SIDEGUIDE
Table 089.1 048.6 56 - Nut / Bolt MMX3 - G2-E MMX3 - G7-E MMX3 - AG5-E
Unit:mm. Unit:mm. Unit:mm. 225 M8
* TECHNICAL DRAWING * MODEL INDICATION SAMPLE
MMX3 - - 206 - 100 - 100 - IV 25 - 0
1 2 3 4 5 6 7 8 9
Model Type Power Motor Belt Conveyor Speed Gear Motor
Power Width Length Code Ratio Gear
(mm.) (cm.)
MMX3 - PG7-E MMX3 - G3-E MMX3 - PG2-E
* SPECIFICATIONS *
1 Model MMX3
2 Type VG MMX3 - G1-E MMX3 - G4-E MMX3 - PG1-E
3 Power 2:AC220V(1Ph) 3:AC220V(3Ph) 4:AC380/400V(3Ph)
4 Motor Power K : U : IV 06 : 60W 09 : 90W
DC 06 : 60W 12 : 120W 20 : 200W
Belt Width (mm.) 200 300 400 500 600 700 800 900 1000
5 Conveyor Width(mm.) 270 370 470 570 670 770 870 970 1070
Belting PVC : POLYVINYL CHLORIDE PU : POLYURETHANE
6 Conveyor Length(Cm.) 80 100 200 300 400 500 600 (~1000)
7 Speed Code K : Fixed Speed U : Variable Speed IV : Inverter DC : DC motor
Gear Ratio K,U,IV - 12.5 ~ 180
8 MMX3 - PG5-E
DC - 15~100
9 Motor Gear O : Oriental P : Panasonic A : Astero (Sumitomo) DC : Oriental Only
SPEED
K : Fixed Speed U : Variable Speed IV : Inverter DC : DC moter INPUT POWER K U IV DC
50 Hz 50 Hz 220V/1Ph O O O O
Ratio Ratio Ratio 60Hz Ratio 50Hz
Max. Max. Min. 220V/3Ph O - O O
K-12.5 25.5 U-12.5 9.6 23.8 IV-12.5 7.7 30.7 DC-15 1.4~42.6 380/400V/3Ph O - O -
K-15 21.3 U-15 8.0 19.9 IV-15 6.4 25.5 DC-30 0.7~21.3
K-18 17.7 U-18 6.6 16.5 IV-18 5.4 21.3 DC-50 0.4~12.7 INVERTER MITSUBISHI
K-25 12.7 U-25 4.8 11.9 IV-25 3.9 15.3 DC-100 0.0~8.3 220V/1Ph FR-D720S MMX2 SUPPORT LEG
K-30 10.6 U-30 4.0 9.9 IV-30 3.2 12.7 220V/3Ph FR-D720 MMX3 - G1-E
K-36 8.8 U-36 3.3 8.2 IV-36 2.7 10.6 380/400V/3Ph FR-D740 MMX3 - AS MMX3 - HA2-AL MMX3 - HSCA2
K-50 6.3 U-50 2.4 5.9 IV-50 2.0 7.6
K-60 5.3 U-60 2.0 4.9 IV-60 1.6 6.3
K-75 4.2 U-75 1.6 3.9 IV-75 1.3 5.1
K-90 3.5 U-90 1.4 3.3 IV-90 1.1 4.2
K-100 3.1 U-100 1.2 2.9 IV-100 1.0 3.8
K-120 2.6 U-120 1.0 2.4 IV-120 0.8 3.1
K-150 2.1 U-150 0.8 1.9 IV-150 0.7 2.5
K-180 1.7 U-180 0.7 1.6 IV-180 0.6 2.1
06 www.mae.co.th MAE SYSTEMS ENGINEERING (THAI) CO.,LTD. MAE SYSTEMS ENGINEERING (THAI) CO.,LTD. www.mae.co.th 07
