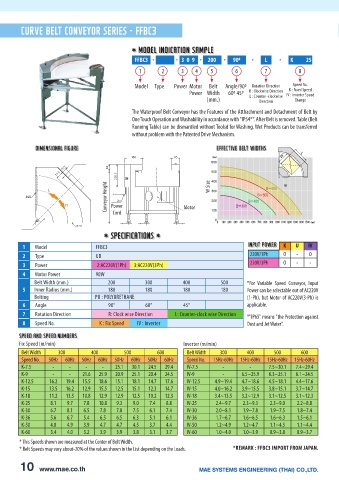

CURVE BELT CONVEYOR SERIES - FFBC3 DRIVE ROLLER CONVEYOR SERIES

* MODEL INDICATION SAMPLE *DRIVE ROLLER CONVEYOR PICTURE
FFBC3 - - 309 - 200 - 900 - L - K 25

1 2 3 4 5 6 7 8

Speed No.
Model Type Power Motor Belt Angle/900 Rotation Direction K : Fixed Speed
Power Width 600 450 R : Clockwise Direction IV : Inverter Speed
(mm.) L : Counter -clockwise Change
Direction
The Waterproof Belt Conveyor has the Features of the Atthachment and Detachment of Belt by
One Touch Operation and Washability in accordance with "IP54*". After Belt is removed. Table (Belt
Running Table) can be dismantled without Toolsd for Washing. Wet Products can be transferred
without problem with the Patented Drive Mechanism.

DIMENSIONAL FIGURE EFFECTIVE BELT WIDTHS
DIMENSIONAL FIGURE DIMENSIONAL FIGURE (SECTION)

Conveyor Height Power Motor W Size

Cord

* SPECIFICATIONS *

1 Model FFBC3 INPUT POWER K U IV
2 Type UD 220V/1Ph O - O * SPECIFICATIONS *
3 Power 2:AC220V(1Ph) 3:AC220V(3Ph) 220V/3Ph O - - 1 Model DRC INPUT POWER K IV
4 Motor Power 90W 2 Roller Dia. (mm) Ø50, Ø60 220V/1Ph O O
Belt Width (mm.) 200 300 400 500 *For Variable Speed Conveyor, Input 3 Roller Length (mm) 400 ~ 900 380V/3Ph O O
5 Inner Radius (mm.) 180 180 180 180 Power can be selectable out of AC220V 4 Roller Pitch (mm) 75, 100
Belting PU : POLYURETHANE (1-Ph), but Motor of AC220V(3-Ph) is 5 Conveyor Length (cm) 60 ~ 100
6 Angle 90° 60° 45° applicable. 6 Conveyor Height (mm) Min. 500
7 Rotation Direction R: Clock wise Direction L: Counter-clock wise Direction *"IP65" means "the Protection against 7 Sprocket Steel, Plastic
8 Speed No. K : Fix Speed IV : Inverter Dust and Jet Water".
8 Roller Speed Max. 20m/min
SPEED AND SPEED NUMBERS 9 Power Supply 1:AC 220V (3Ph), 2: 380V (3Ph)
Fix Speed (m/min) Inverter (m/min) 10 Motor Output 1: 0.2 kW, 2: 0.4 kW, 3: 0.75 kW Gear Motor
Belt Width 300 400 500 600 Belt Width 300 400 500 600 11 Speed Notation K : Fixed Speed, IV : INVERTER
Speed No. 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz Speed No. 15Hz-60Hz 15Hz-60Hz 15Hz-60Hz 15Hz-60Hz
K-7.5 - - - - 25.1 30.1 24.5 29.4 IV-7.5 - - 7.5~30.1 7.4~29.4
K-9 - - 21.6 25.9 20.9 25.1 20.4 24.5 IV-9 - 6.5~25.9 6.3~25.1 6.1~24.5
K-12.5 16.2 19.4 15.5 18.6 15.1 18.1 14.7 17.6 IV-12.5 4.9~19.4 4.7~18.6 4.5~18.1 4.4~17.6
K-15 13.5 16.2 12.9 15.5 12.5 15.1 12.3 14.7 IV-15 4.0~16.2 3.9~15.5 3.8~15.1 3.7~14.7
K-18 11.2 13.5 10.8 12.9 12.9 12.5 10.2 12.3 IV-18 3.4~13.5 3.2~12.9 3.1~12.5 3.1~12.3
K-25 8.1 9.7 7.8 10.8 9.3 9.0 7.4 8.8 IV-25 2.4~9.7 2.3~9.3 2.3~9.0 2.2~8.8
K-30 6.7 8.1 6.5 7.8 7.8 7.5 6.1 7.4 IV-30 2.0~8.1 1.9~7.8 1.9~7.5 1.8~7.4
K-36 5.6 6.7 5.4 6.5 6.5 6.3 5.1 6.1 IV-36 1.7~6.7 1.6~6.5 1.6~6.3 1.5~6.1
K-50 4.0 4.9 3.9 4.7 4.7 4.5 3.7 4.4 IV-50 1.2~4.9 1.2~4.7 1.1~4.5 1.1~4.4
K-60 3.4 4.0 3.2 3.9 3.9 3.8 3.1 3.7 IV-60 1.0~4.0 1.0~3.9 0.9~3.8 0.9~3.7
* This Speeds shown are measured at the Center of Belt Width.
* Belt Speeds may vary about-20% of the values shown in the List depending on the Loads. *REMARK : FFBC3 IMPORT FROM JAPAN.
