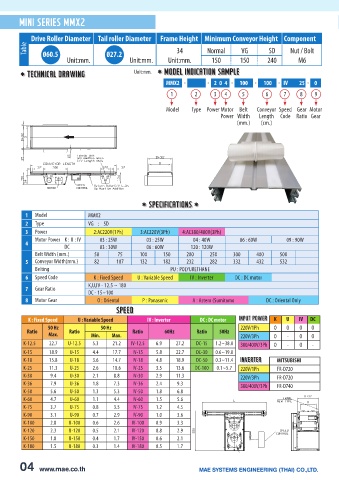

MINI SERIES MMX2 MINI SERIES MMX2

Drive Roller Diameter Tail roller Diameter Frame Height Minimum Conveyor Height Component MMX2 SIDEGUIDE
Table 060.5 027.2 34 Normal VG SD Nut / Bolt MMX2 - AG1-Z MMX2 - AG5-Z MMX2 - PG1-Z

Unit:mm. Unit:mm. Unit:mm. 150 150 240 M6

* TECHNICAL DRAWING Unit:mm. * MODEL INDICATION SAMPLE
MMX2 - - 204 - 100 - 100 - IV 25 - 0

1 2 3 4 5 6 7 8 9

Model Type Power Motor Belt Conveyor Speed Gear Motor
Power Width Length Code Ratio Gear
(mm.) (cm.)
MMX2 - G1-Z MMX2 - G3-Z MMX2 - PG5-Z

1.5t

40

19

* SPECIFICATIONS *
1 Model MMX2 MMX2 SUPPORT LEG
2 Type VG : SD
3 Power 2:AC220V(1Ph) 3:AC220V(3Ph) 4:AC380/400V(3Ph) MMX2 - HSCA2-AL MMX2 - HTA1-AL MMX2 - I-TYPE
Motor Power K : U : IV 03 : 25W 03 : 25W 04 : 40W 06 : 60W 09 : 90W
4
DC 03 : 30W 06 : 60W 120 : 120W
Belt Width (mm.) 50 75 100 150 200 250 300 400 500
5 Conveyor Width(mm.) 82 107 132 182 232 282 332 432 532
Belting PU : POLYURETHANE
6 Speed Code K : Fixed Speed U : Variable Speed IV : Inverter DC : DC motor
K,U,IV - 12.5 ~ 180
7 Gear Ratio
DC - 15~100
8 Motor Gear O : Oriental P : Panasonic A : Astero (Sumitomo DC : Oriental Only
SPEED MMX2 - HSCA1-AL MMX2 - AS MMX2 - S1-D
K : Fixed Speed U : Variable Speed IV : Inverter DC : DC motor INPUT POWER K U IV DC
50 Hz 50 Hz 220V/1Ph O O O O
Ratio Max. Ratio Min. Max. Ratio 60Hz Ratio 50Hz 220V/3Ph O - O O
K-12.5 22.7 U-12.5 5.3 21.2 IV-12.5 6.9 27.2 DC-15 1.2~38.0 380/400V/3Ph O - O -
K-15 18.9 U-15 4.4 17.7 IV-15 5.8 22.7 DC-30 0.6~19.0
K-18 15.8 U-18 3.6 14.7 IV-18 4.8 18.9 DC-50 0.3~11.4 INVERTER MITSUBISHI
K-25 11.3 U-25 2.6 10.6 IV-25 3.5 13.6 DC-100 0.1~5.7 220V/1Ph FR-D720
K-30 9.4 U-30 2.1 8.8 IV-30 2.9 11.3 220V/3Ph FR-D720
K-36 7.9 U-36 1.8 7.3 IV-36 2.4 9.3 380/400V/3Ph FR-D740
K-50 5.6 U-50 1.3 5.3 IV-50 1.8 6.8 MMX2 - S2-TYPE MMX2 - HA1-AL
K-60 4.7 U-60 1.1 4.4 IV-60 1.5 5.6
K-75 3.7 U-75 0.8 3.5 IV-75 1.2 4.5
K-90 3.1 U-90 0.7 2.9 IV-90 1.0 3.6
K-100 2.8 U-100 0.6 2.6 IV-100 0.9 3.3
K-120 2.3 U-120 0.5 2.1 IV-120 0.8 2.9
K-150 1.8 U-150 0.4 1.7 IV-150 0.6 2.1
K-180 1.5 U-180 0.3 1.4 IV-180 0.5 1.7

04 www.mae.co.th MAE SYSTEMS ENGINEERING (THAI) CO.,LTD. MAE SYSTEMS ENGINEERING (THAI) CO.,LTD. www.mae.co.th 05
